Productdetails:
|

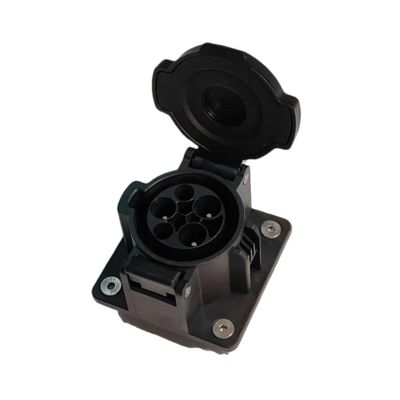

The Neopower American Standard Waterproof EV Charging Dock is designed for safe, efficient, and long-lasting charging of new energy vehicles. Equipped with a reinforced internal structure, it can withstand vehicle crushing without damage, ensuring consistent performance and safety. The corrosion-resistant brass contacts are silver-plated for excellent conductivity and reduced power loss, while the nylon housing offers high-temperature resistance and superior impact protection. With IP54 waterproof certification and strong salt spray resistance, this charging dock performs reliably in both indoor and outdoor environments. It is compatible with American standard EV interfaces, making it an ideal solution for residential garages, workplace charging stations, and public EV infrastructure. Built for durability and ease of use, the Neopower American Standard EV Charging Dock ensures dependable charging under extreme conditions, delivering a robust and professional electric vehicle charging solution.
| Specification | Details |
|---|---|
| Rated Current | 48A / 32A / 20A / 16A |
| Rated Voltage | AC 240V |
| Plug-in Durability | 10000 times |
| Fire Degree | UL94-V0 |
| Housing Material | Nylon |
| Surface Coating | Silver plated |
| Test Voltage | DC 3500V |
| Unplugging Force | 250N |
| Wiring Range | 10-14AWG |
| Waterproof Grade | IP54 |
| Operating Temp | -40°C ~ 80°C |
| Salt Spray Resistance | 72h |
| Insulation Resistance | ≥100MΩ MIN |
| Leakage Current | ≤5mA |
| Pollution Level | 2 |
Product Pictures:
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
